500m Flexible Level Measuring Instrument Deep Well Meter Depth Level Meter Water Level Sensor
試供品およびクーポンのための私に連絡しなさい。
WhatsApp:0086 18588475571
微信: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 材料 | 鉄鋼,コパー | リーナー長さ | 30m,50m,100m,200m,300m,400m,500m 歩いて行こう |
|---|---|---|---|
| 名前 | レベル測定器 深井戸メーター 深さレベルメーター 水位センサー | 使用法 | 井戸、ボーリング孔、パイプの水位を測定します。 |
| 構成 | プローブ、スチール定規、受信システム、リール | プローブの直径 | Φ15mm×160mm |
| 定規の幅 | 9.8mm | 定規ケーブルコーティング | PE、PU |
| 導体 | 缶詰の銅線 | バッテリー | 9V |
| 巻き枠材料 | 鋼鉄 | 配信リードタイム | 5日 |
| ハイライト | 500m flexible water level sensor,deep well meter with warranty,borehole inspection depth level meter |
||
製品の説明

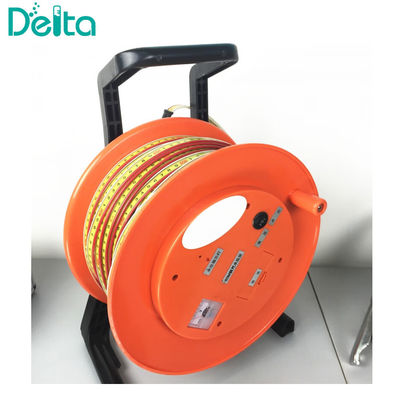

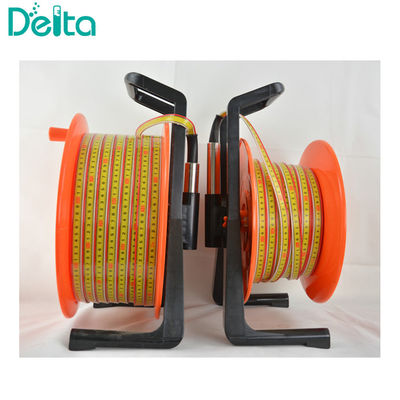

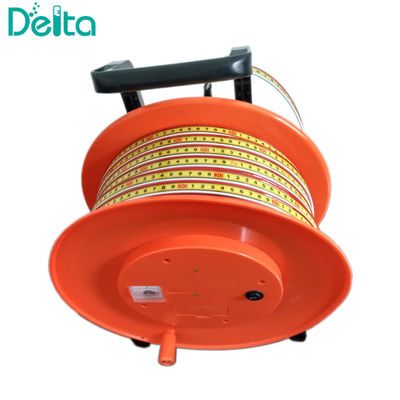

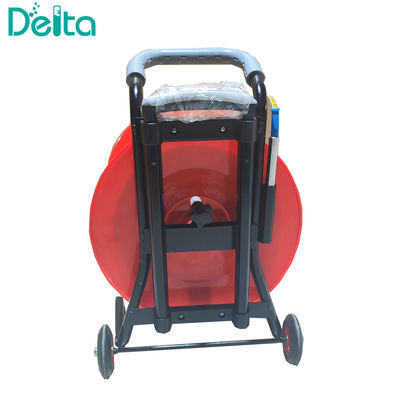

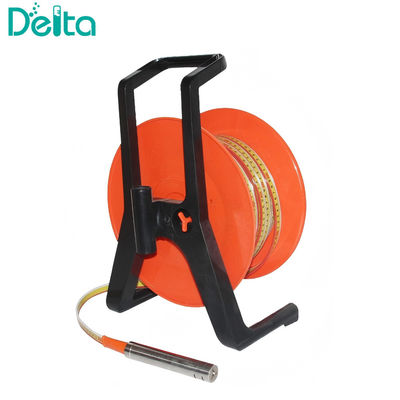

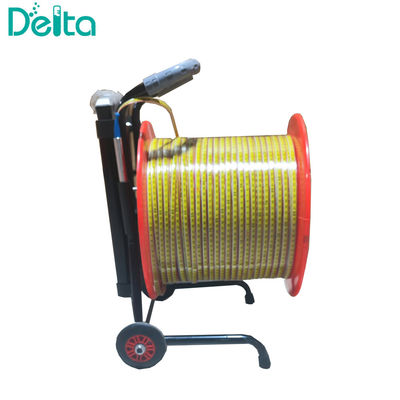

500m Flexible Level Measuring Instrument Deep Well Meter Depth Level Meter Water Level Sensor
Brief Introduction:
The WLM 500m Flexible Level Measuring Instrument Deep Well Meter Depth Level Meter Water Level Sensor offers a precision-engineered solution for accurate water level measurements. Perfectly designed for assessing the water level in wells, boreholes, and pipes, this device is indispensable for tracking groundwater levels and evaluating seepage lines in earth and rock dams with unparalleled accuracy.
This versatile meter is ideal for both construction projects and long-term safety monitoring, ensuring the ongoing integrity of your project.
Structure:

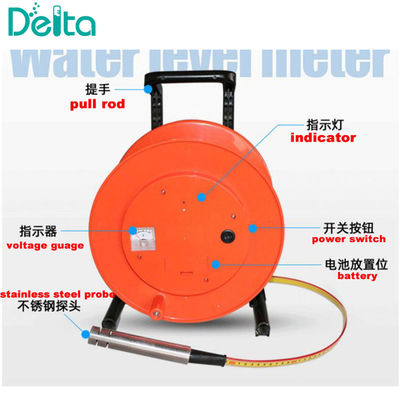

The WLM 500m Flexible Level Measuring Instrument Deep Well Meter Depth Level Meter Water Level Sensor is an integrated system featuring a durable probe, an innovative steel ruler, an advanced receiving system, and a compact reel design.
- Probe: Crafted from high-grade stainless steel, the probe features a water-resistant contact point. It automatically activates the receiving system upon contact with the water surface and deactivates once out of contact, ensuring efficient operation.
- Steel ruler tape: Utilizing cutting-edge plastic technology, the steel ruler is seamlessly bonded with the cable, providing rust protection and simplifying the measurement process for enhanced convenience and precision.
- Receiving system: This sophisticated system comprises a speaker and a peak indicator. The speaker delivers a consistent buzzing sound, while peak indication is managed via a voltmeter. A switch allows seamless selection of the preferred system, ensuring consistent accuracy across all readings.
- Frame: Ingeniously designed with a reel and bracket, the frame houses the receiving system and battery inside the reel, while the steel ruler cable is neatly wrapped around the exterior, optimizing functionality and ease of use.
Main Parameters:
| Model | Max. test depth / (m) | Length (mm) |
Width (mm) |
Height (mm) |
Probe (mm) |
Width of ruler (mm) |
Weight (kg) |
| WLM-30 | 30 | 310 | 250 | 430 | Φ15*160 | 9.8 | 2.85 |
| WLM-50 | 50 | 310 | 250 | 430 | Φ15*160 | 9.8 | 2.95 |
| WLM-100 | 100 | 310 | 250 | 430 | Φ15*160 | 9.8 | 4.3 |
| WLM-150 | 150 | 310 | 250 | 430 | Φ15*160 | 9.8 | 4.7 |
| WLM-200 | 200 | 310 | 250 | 430 | Φ15*160 | 9.8 | 7.3 |
| WLM-300 | 300 | 360 | 250 | 430 | Φ15*160 | 9.8 | 7.85 |
